Choosing a fire alarm can feel like decoding a secret language. You hear about ‘smart’ systems and the addressable smoke detector, and it’s easy to assume you need the most complex tech. But that’s not always true. For many businesses, a simpler approach is smarter. We’re talking about the classic conventional fire alarm system. Each smoke detector conventional unit acts as a reliable guard for a specific ‘zone’ of your property. We’ll break down how this straightforward conventional fire alarm works and help you see if it’s the perfect, cost-effective fit for you.

Key Takeaways

Choose Conventional Alarms for Smaller Spaces: These systems use a zone-based approach to detect fires, providing reliable and straightforward protection that is a perfect, budget-friendly fit for smaller businesses and properties.
The Main Difference Is Location Accuracy: A conventional system identifies the general zone of a fire, while an addressable system pinpoints the exact detector. This distinction is the most important factor when deciding which system is right for your building’s size and complexity.
Assess Your Property to Make the Right Choice: The best fire alarm for you depends on your building’s size, layout, and budget. Always consider long-term maintenance costs and work with a professional to ensure your choice meets all NFPA fire codes.

What Exactly Is a Conventional Fire Alarm System?

A conventional fire alarm system is a straightforward and dependable method for fire protection. As the classic, time-tested approach, it uses a simple, zone-based system to detect potential fires, making it an excellent and cost-effective choice for smaller businesses and properties. The system works by grouping detectors into specific areas, or zones, to quickly identify the general location of a problem. Let’s look at how these systems are put together and how they function to keep your property safe.

What Are Its Core Components?

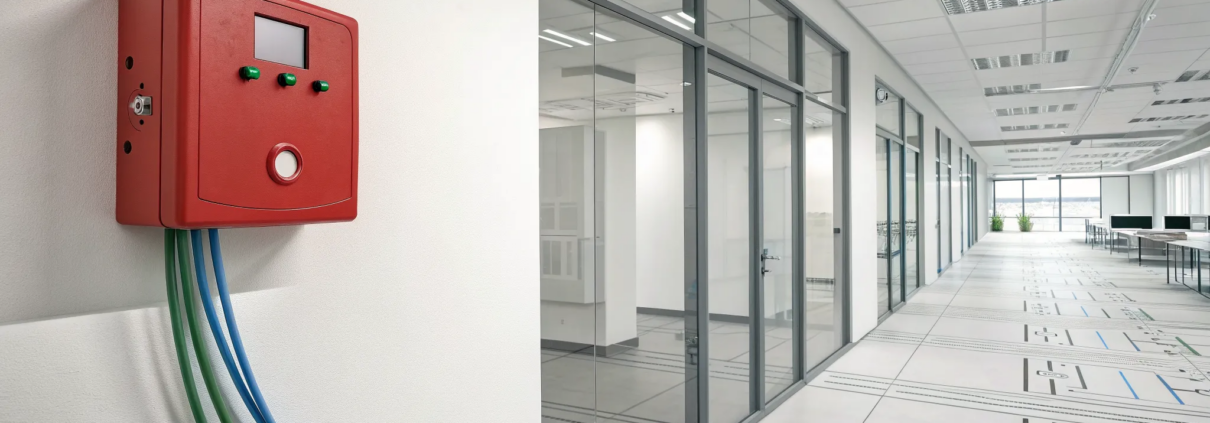

A conventional fire alarm system consists of a central control panel connected to devices like smoke and heat detectors. These detectors are wired together in groups called “zones,” with each zone covering a specific area of your building, like a floor or wing. When any detector senses smoke or a rapid rise in heat, it signals the main panel. The panel then triggers an alarm, indicating an issue within that entire zone. This setup ensures you’re alerted to a problem in a specific section of your building, allowing for a swift response. Proper fire alarm services ensure these components work together seamlessly.

Detector Bases

Think of a detector base as the foundation for your smoke or heat detector. It’s the part that is permanently mounted to the ceiling or wall and connected to the building’s wiring. The actual detector head then twists and locks into this base, creating a secure electrical connection. This two-piece design is incredibly practical, as it allows for easy removal of the detector for cleaning, maintenance, or replacement without having to mess with the wiring. While some detectors are sold with a base included, it’s crucial to ensure the base and detector are compatible. Using the right systems and products is essential for a reliable fire alarm system that functions correctly when you need it most.

Remote Indicators

A remote indicator is a small, simple, yet highly effective device. It’s essentially a small LED light installed outside a room—like next to the door of an office, hotel room, or storage closet—that illuminates when the detector inside that specific room is activated. In a conventional system where an alarm only tells you the general zone, a remote indicator helps you pinpoint the exact source of the problem without having to open every door. This allows building managers and first responders to locate an alarm from a distance, saving critical time during an emergency and minimizing the need for a disruptive search through an entire zone.

Detectors with Built-in Sounders

Some detectors come with an extra layer of protection: a built-in sounder. These are smoke or heat detectors that also have their own integrated alarm. When the device detects a potential fire, it not only sends a signal to the main control panel to trigger the building-wide alarm but also emits a loud alert right at the source. This provides an immediate, localized warning, which is especially valuable in noisy environments or in specific areas where an early alert is critical. These types of detectors are often used to meet specific fire code requirements and are a key part of comprehensive fire alarm services that prioritize rapid notification.

How Do Detection Zones Work?

The concept of “zones” is what defines a conventional system. Each zone is a distinct circuit of fire detection devices wired back to the control panel. If a fire starts, the panel will show you which zone is in alarm, for example, “Zone 3: Main Lobby.” This tells you the general area of the incident but won’t specify which exact smoke detector was triggered. You’ll know where to start looking, but you won’t have the pinpoint location that some other systems provide. This method is highly effective for smaller spaces where finding the source of an alarm is relatively quick and easy.

What to Know About Wiring and Installation

The installation of a conventional system centers on creating those dedicated zones. Each zone requires its own separate wire connecting all its devices directly to the main control panel. For a building with five zones, you would need five distinct circuits running to the panel. This can lead to more extensive wiring compared to other systems, especially in larger buildings. The control panel acts as the system’s command center, interpreting signals and activating alarms. Because the wiring is so fundamental to the system’s operation, professional installation is key to ensuring everything functions reliably. If you have questions about installation, it’s always best to contact an expert.

Understanding Different Types of Conventional Detectors

A conventional fire alarm system is only as good as the devices connected to it. Different environments have different risks, which is why there isn’t a one-size-fits-all detector. Choosing the right type of detector for each zone is crucial for creating a reliable system that minimizes false alarms and responds quickly when it matters most. From detectors that “see” smoke to those that “feel” heat, each has a specific job to do. Let’s explore the most common types you’ll find in a conventional setup.

Photoelectric Smoke Detectors

Photoelectric smoke detectors are one of the most common types you’ll see in commercial buildings. They work by using a beam of light. When smoke particles enter the detector’s chamber, they scatter the light, causing some of it to hit a sensor, which then triggers the alarm. This technology makes them especially good at detecting slow, smoldering fires—the kind that might start in upholstery or from an electrical short. Because of their reliability, they are a go-to choice for general-purpose fire detection in offices, hallways, and common areas. Leading manufacturers offer a range of these detectors that integrate seamlessly into conventional systems, providing a solid foundation for property protection.

Fixed Temperature and Rate-of-Rise (RoR) Heat Detectors

Sometimes, a smoke detector isn’t the right tool for the job. In places like kitchens, boiler rooms, or dusty workshops, smoke, steam, or airborne particles can easily cause false alarms. That’s where heat detectors come in. There are two main kinds: fixed temperature detectors, which go off when the room hits a specific, unsafe temperature, and rate-of-rise (RoR) detectors, which are triggered by a sudden, rapid spike in heat. Many modern devices combine both functions for comprehensive coverage. These detectors are essential for monitoring areas where environmental conditions make smoke detection impractical, ensuring you have reliable fire alarm services without the nuisance of false alerts.

Multi-Criteria Detectors

To get the best of both worlds, you can use multi-criteria detectors. These advanced devices combine two or more sensor technologies—typically photoelectric smoke detection and thermal (heat) detection—into a single unit. The detector’s internal software analyzes the data from both sensors to make a more intelligent decision about whether a real fire is present. This dual approach significantly reduces the chance of false alarms while also improving the speed and accuracy of detection for a wider variety of fire types. As explained by industry leaders like Hochiki America, this makes them a versatile and highly reliable option for complex environments where different fire risks might exist.

Specialized Detectors for Unique Environments

Beyond standard smoke and heat detection, some areas require specialized devices to address unique risks.

Duct Detectors

In buildings with HVAC systems, a fire can spread rapidly and silently through the air ducts. Duct detectors are designed specifically to prevent this. Installed within the ductwork, these devices constantly sample the air moving through the system. If they detect smoke, they not only trigger the fire alarm but can also shut down the HVAC fans to stop the smoke from being circulated throughout the building. This is a critical safety feature that contains the threat and prevents a localized issue from becoming a building-wide emergency. Companies like Mircom offer specialized duct detectors for this exact purpose.

Gas and Carbon Monoxide (CO) Detectors

Fire isn’t the only danger a building can face. Invisible threats like natural gas leaks or carbon monoxide buildup can be just as deadly. Conventional alarm systems can be expanded to include detectors for these specific hazards. Carbon monoxide (CO) detectors are essential in any building with fuel-burning appliances, furnaces, or attached garages. Similarly, gas detectors can provide an early warning for leaks from gas lines or equipment. Integrating these devices into your fire alarm system provides a more complete life-safety solution, alerting occupants to a wider range of potential dangers before they become critical.

Intrinsically Safe Detectors for Hazardous Locations

In environments where flammable gases, vapors, or combustible dust are present—like in manufacturing plants, chemical storage areas, or refineries—the fire alarm detector itself cannot be an ignition source. Intrinsically safe detectors are engineered for these hazardous locations. Their electrical circuits are designed to operate on very low energy, preventing them from producing a spark that could cause an explosion. This specialized equipment ensures that you can have reliable fire detection even in the most volatile environments, providing crucial protection without adding to the risk. These are highly specialized components for specific industrial applications.

Conventional vs. Addressable Alarms: Key Differences

When you’re looking into fire alarm systems, you’ll quickly come across two main types: conventional and addressable. Both are designed to detect a fire and alert people to safety, but they communicate information in fundamentally different ways. Think of it like the difference between getting a general alert that there’s traffic on the highway versus getting a specific notification that there’s a slowdown at your exact exit.

A conventional system is a more traditional, straightforward solution that works perfectly for many smaller buildings. An addressable system is a more advanced, “smart” system that provides detailed information, making it ideal for larger or more complex properties. Understanding the key differences in how they detect fires, their installation requirements, and their long-term costs will help you make the best choice for your property. Choosing the right fire alarm services is a critical step in protecting your people and your assets, so let’s break down what sets these two systems apart.

Zone Detection vs. Pinpoint Location

The biggest difference between conventional and addressable systems is how they identify the location of a fire. A conventional system divides your building into broad areas called “zones.” If a smoke or heat detector is triggered, the control panel will tell you which zone the alert is coming from, like “Zone 1 – First Floor,” but not the exact device. You’ll know the general area of the problem, but you’ll have to investigate further to find the precise spot.

In contrast, an addressable system gives every single device (like a smoke detector or pull station) its own unique “address.” When a device is activated, the control panel pinpoints its exact location, telling you something like, “Smoke Detector – Conference Room.” This immediate, precise information allows first responders to act faster and more effectively.

Which System Is Easier to Install?

The wiring for these two systems is also quite different. Conventional fire alarms require a separate wire to be run from the control panel to each zone. All the devices within a single zone are connected to this one wire. For a building with many zones, this can mean a lot of complex and labor-intensive wiring.

Addressable systems, on the other hand, typically use a single looped wire that connects all devices to the control panel. Because each device has its own address, they can all communicate on the same circuit without confusion. This often simplifies the installation process and requires less cable, which can help offset the higher cost of the components, especially in larger buildings.

Wiring Method: Radial Circuits vs. Loops

How these systems are wired is a major technical difference that really affects the installation process. Conventional systems rely on what are called radial circuits. Imagine spokes on a wheel: a separate wire runs from the control panel out to each individual zone. This is simple enough for a small property with just a couple of zones, but it gets complicated and labor-intensive in larger buildings that need more wiring. A key drawback is that if a single wire breaks, it can knock out an entire zone of detectors.

Addressable systems take a smarter approach with a loop design. Here, a single cable runs from the control panel, connects every device in one continuous loop, and then returns. This design is much more efficient and uses significantly less wire. Even better, it adds a layer of reliability. If there’s a break in the loop, the system can usually keep communicating with all devices by sending signals from both directions. This wiring difference makes addressable systems more resilient and often easier to set up in complex buildings, which is a critical factor for any commercial fire alarm installation.

Maintenance and Repair: What to Expect

When it comes to keeping your system running smoothly, addressable systems have a clear advantage. If a device on a conventional system malfunctions, you know which zone has the problem, but you’ll have to physically check every device in that zone to find the faulty one. This can take a lot of time and drive up maintenance costs.

With an addressable system, the control panel tells you exactly which device is having an issue and what the problem is, whether it’s a maintenance alert or a malfunction. This makes troubleshooting incredibly fast and efficient, saving you time and money on service calls and minimizing system downtime.

Cost vs. Value: A Financial Breakdown

Your budget will definitely play a role in your decision. Conventional fire alarm systems generally have a lower upfront cost for the hardware, making them an attractive option for smaller businesses or properties with simple layouts. However, the installation can be more labor-intensive, and the troubleshooting process can lead to higher maintenance costs over the life of the system.

Addressable systems have a higher initial equipment cost, but they often provide better long-term value. The simpler wiring can reduce installation time, and the advanced diagnostic features significantly cut down on maintenance expenses. To figure out which system offers the best value for your specific needs, it’s always a good idea to get a professional consultation.

Scalability for Future Expansions

As your business grows, your building might change, too. You might add a new wing, reconfigure your office space, or simply find your needs evolving. This is where scalability becomes a crucial factor. Conventional systems are somewhat rigid; adding a new zone of protection requires running an entirely new, dedicated wire from the control panel, which can be disruptive and costly. Addressable systems, however, are built for growth. Since they use a looped wiring design, adding new detectors is often as simple as connecting them to the existing loop. This flexibility makes addressable systems a forward-thinking investment, ensuring your fire protection can easily adapt and expand right along with your business.

Advanced Features and Integration Capabilities

Beyond just detecting a fire, addressable systems offer a level of intelligence that conventional systems can’t match. They provide detailed reports on the status of each device, alerting you to maintenance needs like a dirty detector before it can cause a false alarm. The most significant advantage, however, is their ability to integrate with other building management systems. An addressable fire alarm can be programmed to automatically shut down ventilation systems to prevent smoke from spreading, unlock emergency exits, or recall elevators to the ground floor. This creates a coordinated, automated response that enhances safety and operational efficiency. These advanced systems and products turn your fire alarm from a simple alert into an active part of your building’s safety strategy.

Weighing the Pros and Cons of Conventional Alarms

Conventional fire alarms are a trusted and widely used technology for a reason. But like any system, they have specific strengths and weaknesses. Understanding these pros and cons is the first step to deciding if this type of system is the right fit for protecting your property and the people inside it. Let’s walk through what makes conventional systems a great choice for some, and where they might fall short for others.

Why Simplicity and Reliability Are Key Benefits

One of the biggest advantages of a conventional fire alarm system is its straightforward design. These systems are built to do one job and do it well: detect a potential fire within a specific zone and alert the monitoring station. There are no complex electronics or programming involved, which often translates to incredible reliability. Fewer complicated parts mean fewer potential points of failure. When it comes to something as critical as fire detection, this dependable, no-frills approach provides essential peace of mind. This simplicity also makes them easier for trained professionals to install and maintain, ensuring your NFPA fire alarm services keep your building protected.

Ideal for Small Businesses and Properties

If you own or manage a smaller commercial property, a conventional system is often the most practical and cost-effective solution. Think of spaces like small retail stores, local restaurants, or single-story office buildings. In these settings, a zone-based alert provides enough information for a quick response. You don’t need the pinpoint accuracy required for a massive warehouse or a high-rise. This makes conventional systems an excellent way to get effective, code-compliant fire protection without overspending on features you don’t need. They deliver solid, reliable safety that fits the scale and budget of many small to medium-sized businesses.

The Challenge: Locating Fires in Large Buildings

The primary drawback of a conventional system becomes clear in larger or more complex buildings. Because these systems work by dividing a building into zones, they can only tell you that a detector has been triggered somewhere within that zone, not its exact location. For example, a single zone might cover an entire floor with multiple offices and storage rooms. If a fire starts, first responders will know which floor to go to, but they’ll still have to search the entire area to find the source. This can waste precious time in an emergency, making conventional systems less suitable for large facilities where rapid, precise location is critical.

Common Myths About Conventional Alarms, Busted

Let’s clear the air on a few common myths about fire alarms. First, not all systems are created equal. The idea that “a fire alarm is a fire alarm” is simply not true; the differences between conventional and addressable systems highlight how technology is tailored for different needs. Another dangerous myth is that you don’t need an alarm because people can smell smoke. A professionally monitored system can detect the earliest signs of a fire long before a person would, especially at night. Early detection is the key to a safe evacuation. If you have questions, it’s always best to contact a professional for answers.

Choosing the Right Fire Alarm System for Your Business

Picking the right fire alarm system feels like a big decision, but it gets a lot easier when you know what to look for. It really comes down to understanding your property’s specific needs, your budget, and the safety codes you need to follow. By thinking through a few key areas, you can confidently select a system that protects your people and your property without overcomplicating things. Let’s walk through the essential factors to help you make the best choice for your business.

Assess Your Building’s Size and Layout

The first thing to think about is your building’s size and layout. Conventional fire alarm systems are a fantastic, reliable choice for smaller buildings like local retail stores, restaurants, and single-office spaces. Because they divide your building into broad zones, they work perfectly when you can quickly check a general area to find a potential fire. For a straightforward layout, a conventional system provides effective protection.

When to Consider an Addressable System

However, if your property is larger or has a more complex layout—think multi-story office buildings, warehouses, or schools—an addressable system becomes the smarter choice. In these environments, knowing a fire is just “somewhere on the third floor” isn’t enough. An addressable system provides the exact location of the triggered device, allowing first responders to act immediately without wasting precious time searching. This level of precision is also invaluable for maintenance. Instead of manually checking every detector in a zone to find a fault, the system tells you exactly which device needs attention. While the initial investment is higher, the long-term savings on maintenance and the superior level of protection make it the right choice for more demanding properties. For professional guidance on which system is right for you, it’s always best to consult an expert.

Balance Your Budget with Long-Term Costs

Your budget is always a key consideration. Conventional systems often have a lower upfront installation cost, making them an attractive option for many small business owners. While the initial price is lower, it’s wise to think about long-term value. It’s about finding the right balance between your immediate budget and operational costs. We can help you explore affordable security solutions that fit your financial plans perfectly.

Meet NFPA Codes with Proper Installation

Meeting safety standards isn’t just a good idea; it’s the law. Fire alarm systems must comply with local fire codes, often based on the National Fire Protection Association’s code, NFPA 72. The best way to guarantee compliance is to work with certified professionals for the installation. Our team specializes in NFPA fire alarm services, making sure your system is installed correctly and meets all regulations.

Understanding Safety Certifications like UL and CSFM

When you’re choosing a fire alarm, you’ll likely come across certifications like UL and CSFM. These aren’t just random letters; they’re a seal of approval that tells you the equipment has been thoroughly tested for safety and reliability. Think of UL (Underwriters Laboratories) certification as the gold standard. A UL-listed system has passed rigorous tests to ensure it performs correctly when you need it most. While not as common in Georgia, the CSFM (California State Fire Marshal) certification is another great example of a high safety standard, required for all fire equipment sold in California. Seeing these certifications on a product gives you peace of mind, confirming that you’re investing in a dependable system that meets strict performance and safety benchmarks.

What Features Are Non-Negotiable?

Finally, think about the specific components your system will need. A complete conventional system includes more than just smoke detectors. Depending on your building, you might need duct detectors for your HVAC system, beam detectors for large open areas, and manual pull stations near exits. Each of these systems and products plays a vital role in creating a comprehensive safety net. We can help you assess your property to determine the exact mix of devices you need.

Frequently Asked Questions

Is a conventional fire alarm system a good choice for my business? A conventional system is an excellent and reliable choice for smaller, less complex properties. If you run a small retail shop, a local restaurant, or a single-story office, this system provides solid, code-compliant protection without the cost of features you may not need. Its straightforward, zone-based approach is perfectly suited for spaces where finding the source of an alarm is quick and easy.

What’s the biggest drawback of a conventional system? The main limitation is its lack of specific location data. The system will tell you which zone is in alarm, for instance, the “second floor,” but it won’t identify the exact smoke detector that was triggered. In a large or complicated building, this means first responders might spend valuable time searching the entire zone to find the fire’s origin.

Are conventional systems compliant with fire codes? Yes, absolutely. When installed and maintained by certified professionals, conventional fire alarm systems meet the strict standards set by the National Fire Protection Association (NFPA). Proper installation is key, as it ensures all wiring and device placement follows the required codes to keep your building, and everyone in it, safe.

How does maintenance for a conventional system work? Like any life-safety system, conventional alarms require regular inspections and testing to ensure they’re working correctly. If a device malfunctions, the control panel will indicate a problem within a specific zone. A technician will then need to manually inspect the devices in that zone to locate and fix the issue, which can be more time-consuming than with an addressable system.

Can I add more detectors to my conventional system later on? It is possible to add more devices, but there are limits. Each zone is on a circuit that can only support a certain number of detectors. If you need to expand, a professional will need to assess your control panel’s capacity and the existing wiring to see if new devices can be added to a current zone or if a new zone needs to be created.

Exploring “Single-Loop” Addressable Alternatives

While conventional systems are perfect for many spaces, it’s worth knowing about their more advanced counterparts: addressable fire alarm systems. The key difference is in the wiring and the information they provide. Instead of multiple wires for each zone, an addressable system uses a single “loop” of wire that connects all devices. Each detector and pull station on this loop has a unique digital “address,” much like a specific street address. If a detector is triggered, the control panel doesn’t just tell you a general zone is in alarm; it pinpoints the exact device, like “Smoke Detector, Second Floor Breakroom.” This level of precision allows for a much faster response, making these systems a safer and more reliable choice for larger or more complex properties.

Planning for System Upgrades and Obsolete Parts

Choosing a fire alarm is a long-term investment, so it’s smart to think about the future. As technology moves forward, parts for older systems can become difficult to find, making repairs costly and complicated. Addressable systems are often considered more “future-proof” because they are easier to upgrade and integrate with new technologies. While they may have a higher initial cost, their advanced diagnostic features can save you significant money over time. The control panel can identify the exact device that needs attention, which drastically cuts down on troubleshooting time and expense. Planning for professional maintenance from the start ensures your system remains reliable and effective for years to come.
